Technical data

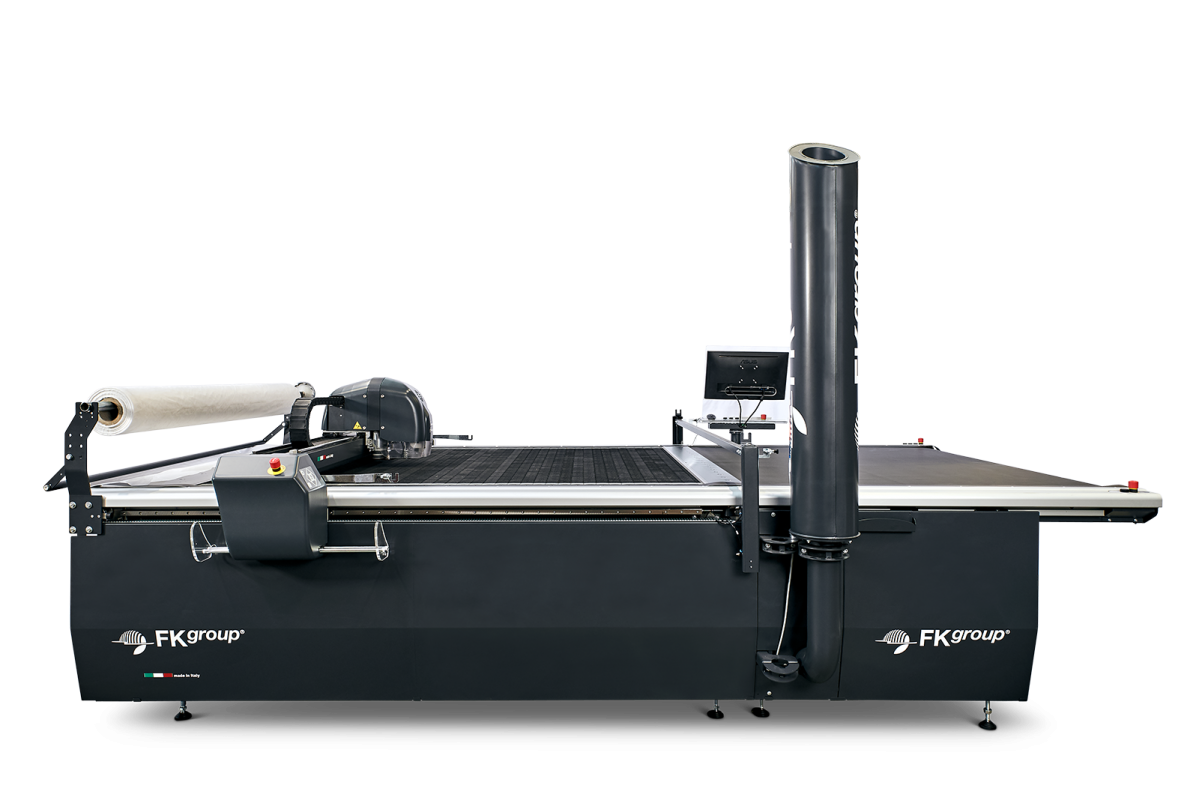

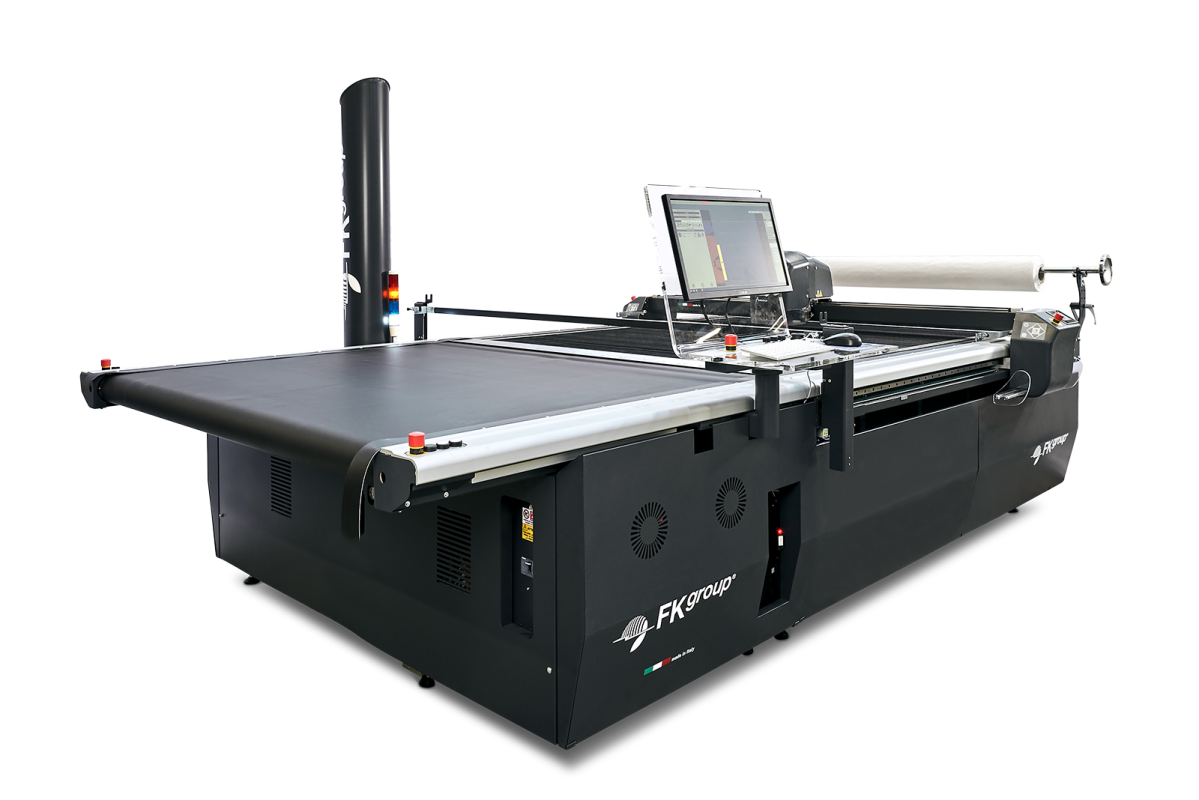

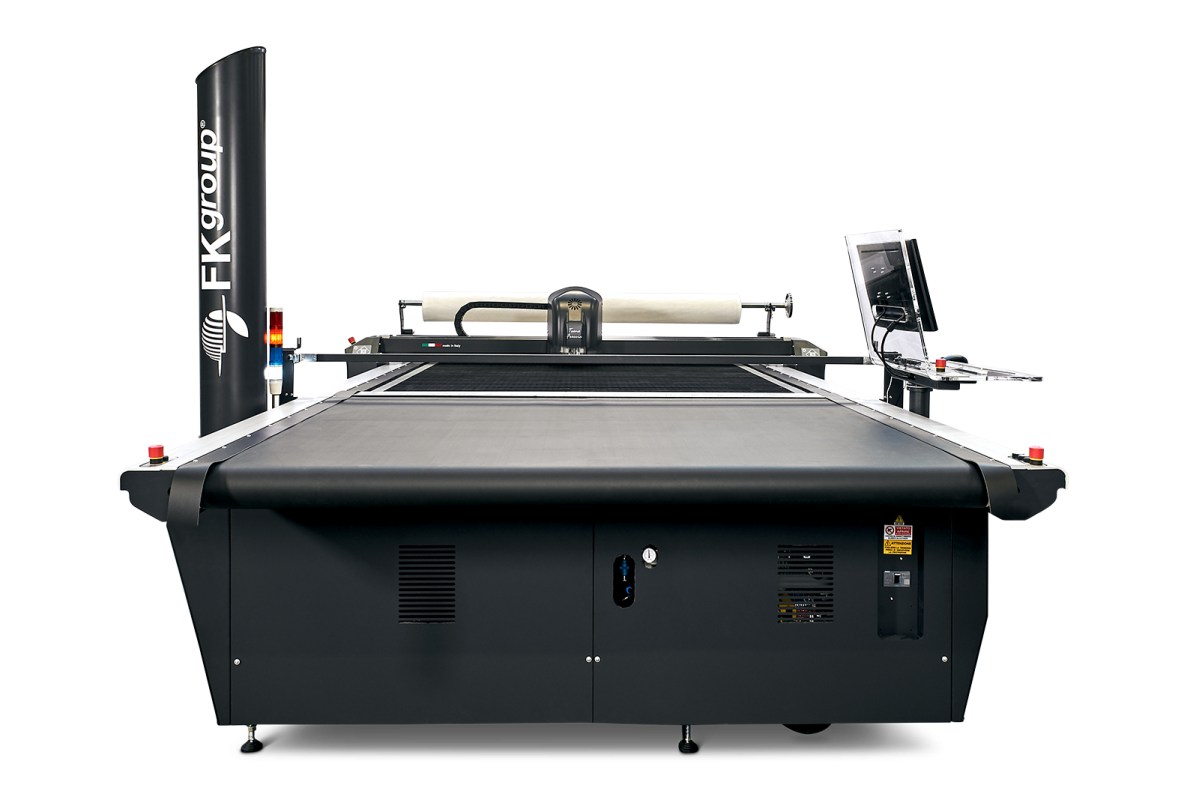

Tecno Freccia is the automatic conveyor cutting system for mattresses up to 2.5 cm. One machine with many functions, Tecno Freccia is: versatile; fast and accurate; efficient.
The innovative 4 kW double turbine system lowers consumption to 4.9 kW making Tecno Freccia even more Eco-friendly. The system ensures reduced noise thanks to the 2 turbines with reduced frequency revolutions. The double impeller allows for more efficient suction.
The system is also specifically designed for cutting: PVC, glass fiber, carbon fiber, protective fibers from medical rays, laminated fabrics, foam, wadding, rubber, insulation for walls and pipes, polyurethane, nylon and kevlar. Perfect for industrial sectors such as construction, automotive, nautical, aeronautics, furniture, defense or protective clothing.
The Just Cut control software allows to set and modify the cutting parameters in a fast, intuitive and safe way.
The technical assistance service, by telephone or via the web, allows the operator to always have real-time support and work in complete peace of mind.
The machine is equipped with the Non Stop Cutting System that allows you to manage the cutting as it advances (Continuous Cutting software) or to work with consistent mattresses (Quick Release Vacuum).
Technical data
N° 2 TURBINES OF 4 kW O 5,5 kW
Working Area (cm) | 180 x 180 | 200 x 180 | 220 x 180 | 250 x 180 | 320 x 180 | 180 x 240 | 200 x 240 | 250 x 240* | 320 X 240* | ||||||
Overall dimensions L x W x H (cm) | 480 x 284 x 214 | 480 x 304 x 214 | 480 x 324 x 214 | 480 x 354 x 214 | 480 x 424 x 214 | 526 x 284 X 214 | 526 x 304 x 214 | 526 x 354 x 214 | 526 x 424 x 214 | ||||||
Weight (Kg) | 2300 | 2450 | 2750 | 2850 | 3290 | 2850 | 2950 | 3250 | 3890 | ||||||
Installed Power (kW) | 14 | 25 | |||||||||||||
Average Consumption (kW) | 4,9 | 4,9 | 6 | 6 | 7 | 7 | 7 | 7 | 7,5 | ||||||
Power supply Tension | 400V±10% | ||||||||||||||
Max compressed lay height (cm) | 2,5 |
*For 250/240 and 320/240, 4 turbines of 4 kW or 5.5 kW are required
N° 1 11 kW TURBINE (unloading table without overhang)
Working Area (cm) | 180×180 | 200×180 | 220 x 180 |
Overall dimensions L x W x H (cm) |
367 x 284 x 214 | 367 x 304 x 214 | 367 x 324 x 214 |
Weight (Kg) | 2200 | 2350 | 2650 |
Installed Power (kW) | 14 | ||
Average Consumption (kW) | 4,9 | 4,9 | 6 |
Power supply Tension | 400V±10% | ||
Max compressed lay height (cm) | 2,5 |
